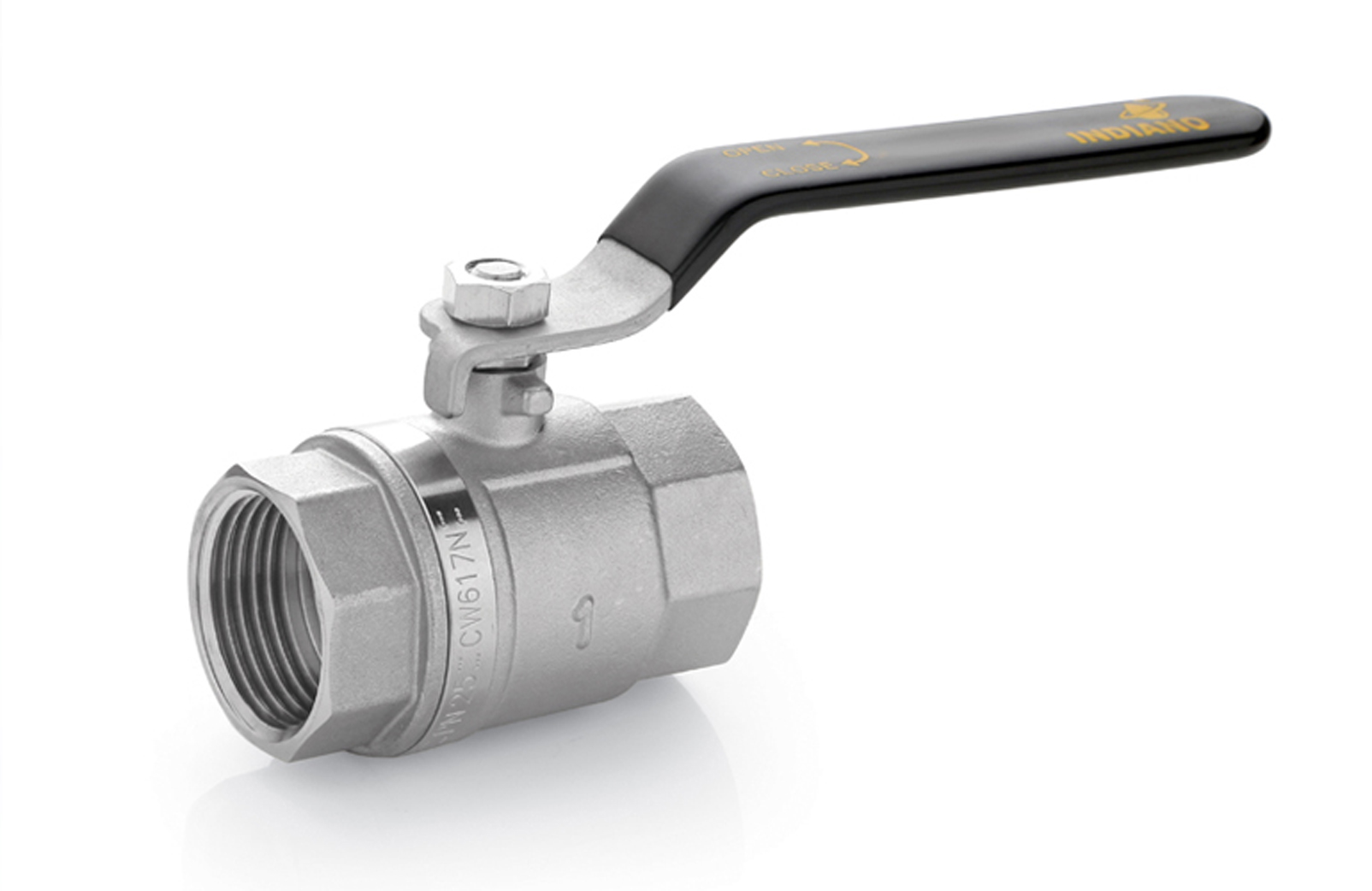

Brass Forged Ball Valve

Installation

» INDIANO® brass ball valves can be installed bi-directional.

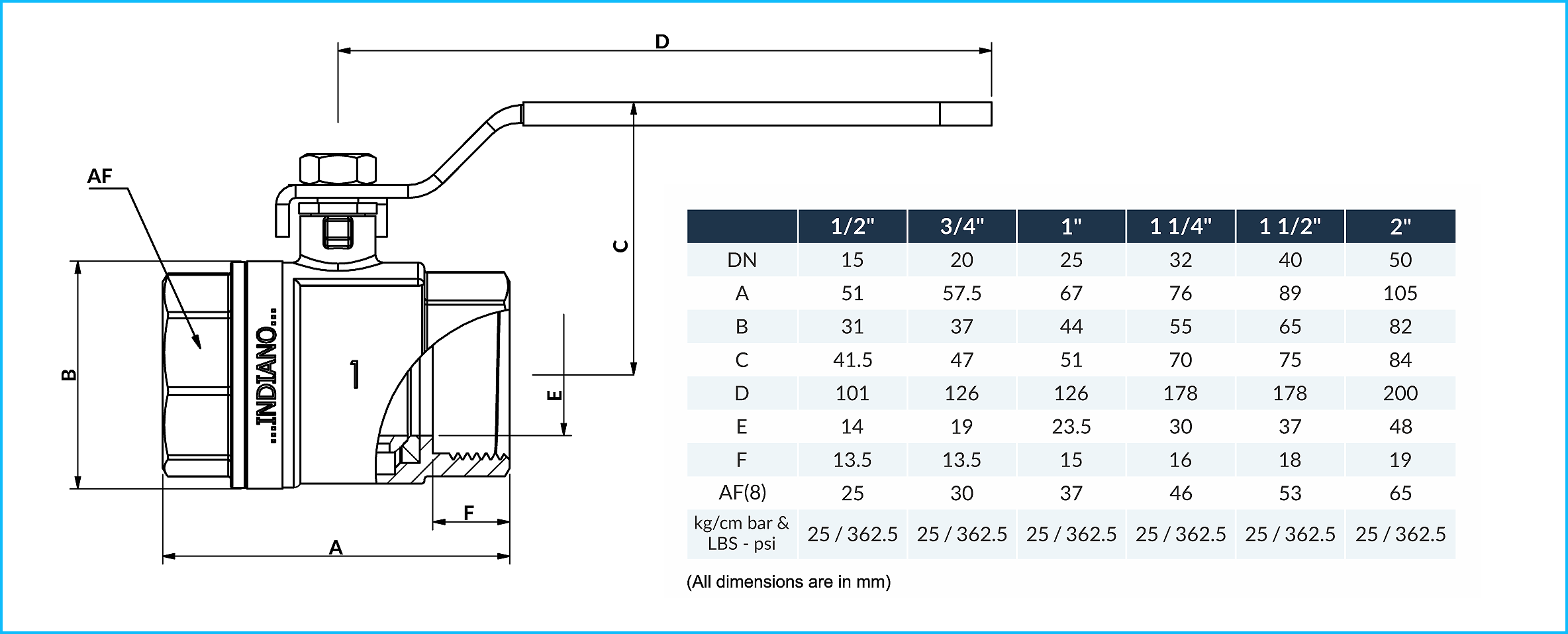

Size Specification

  • Specifications
  • Benefits

» Material - Full brass forged body. (Nickel plated)
» Seat ring – Virgin PTFE (Teflon).
» Lever – Dacromet coated steel handle.
» Spindle – Blow out proof.
» Ball – Super finish chrome plated
» End threads – BSP to ISO 228 at both ends.
» Temp. Working: -20 to 180 degree C.
» Pressure rating – 25 Bar (at 60 degree C).
» Material grade, size & pressure rating permanently roll marked on the surface.
» Dust and thread protection Cap.

» INDIANO® valves are highly corrosion (rust) resistance with hard water contact.
» INDIANO® valves are designed such that no leakage at low pressure.
» INDIANO® valves are manufactured from low lead content brass (CW 617N) and are safe for drinking water and health.
» INDIANO® valves are easy to fit and replace with standard pipe threads.

Leverage agile frameworks to provide a robust synopsis for high level overviews. It erative approaches to corporate strategy foster collaborative thinking to further the overall value proposition. Organically grow the holistic world view of disruptive innovation via workplace diversity and empowerment.

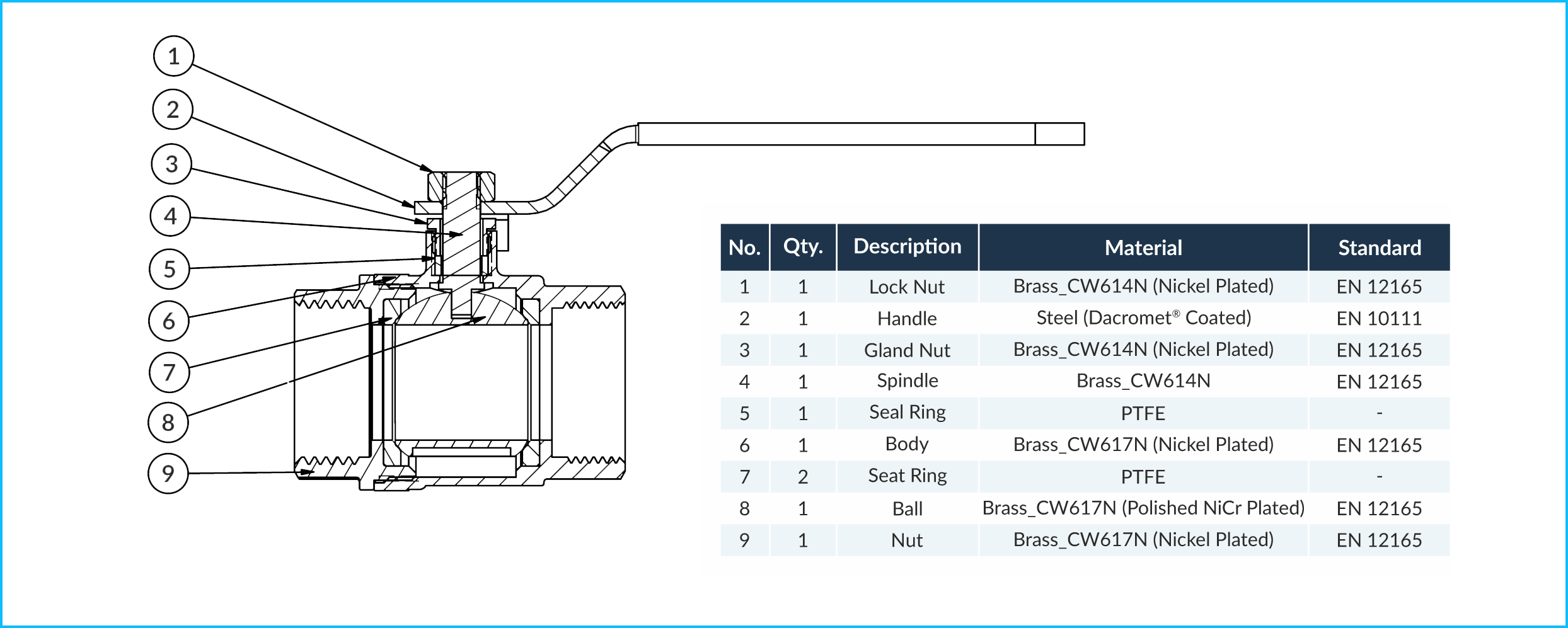

Material Specification
