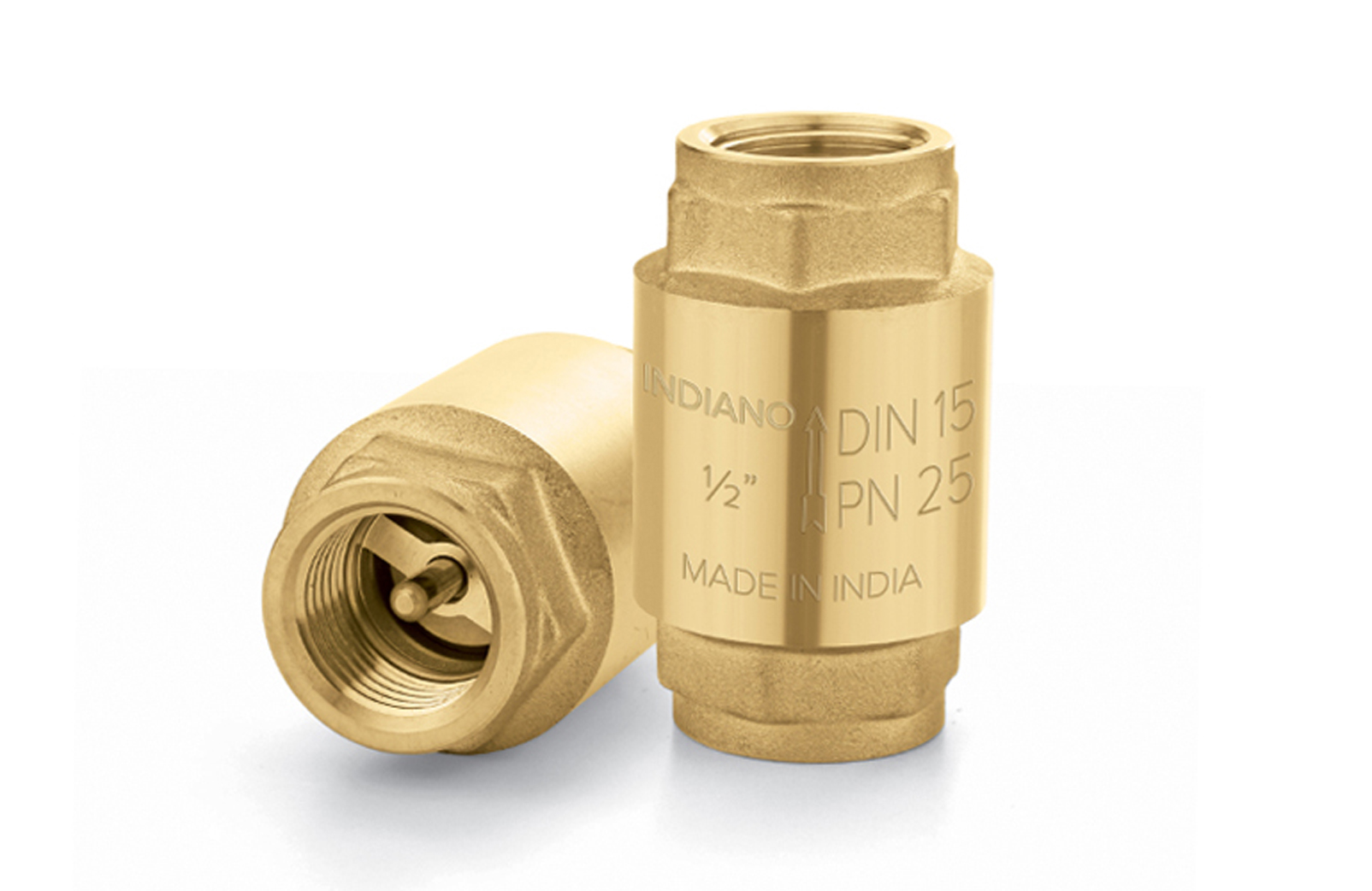

Brass Spring Check Valve

Installation

» INDIANO™ check valves can be installed in any position - Vertical / Horizontal.

Application

» Pump discharge.
» Boilers
» HVAC systems
» Building Utilities
» Pressure pumps
» Sump pumps
» Solar hot water systems and many more....

Size Specification

  • Specifications
  • Advantages
  • Benefits

» Material - Full brass forged body.
» Seal - NBR.
» Support to seal - Stainless steel plate.
» Spring - Stainless Steel.
» End threads - BSP to ISO 228 at both ends.
» Temp. Working : -20 to 100 degree C.
» Flow indicator, size & pressure rating permanently marked on the surface.

» Prevents water backflow. (Zero leakages.)
» Prevents water hammer.
» Prevents loss of prime in the pump systems.
» Prevents loss of water pressure in the building.

» No direct metal to metal sealing.
» Silent.
» Quick closing.
» Capable of handling extra weight of piping installations.

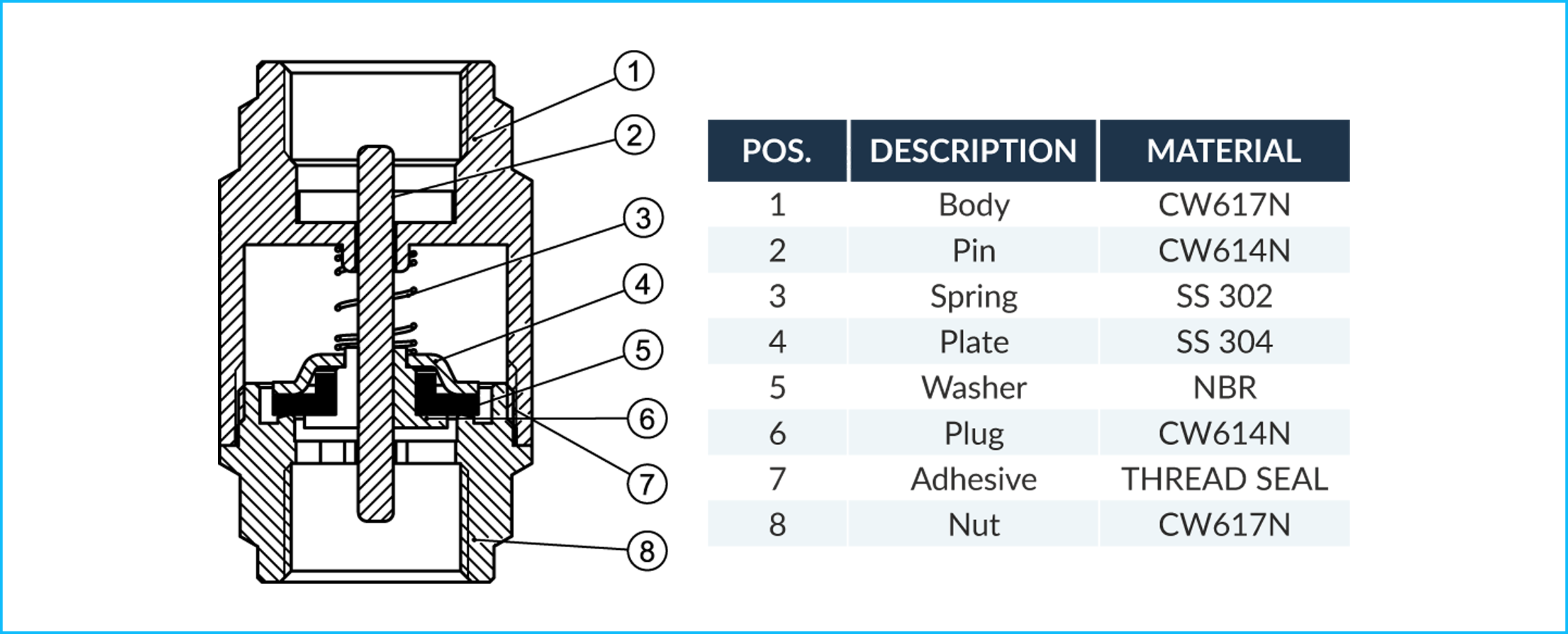

Material Specification
